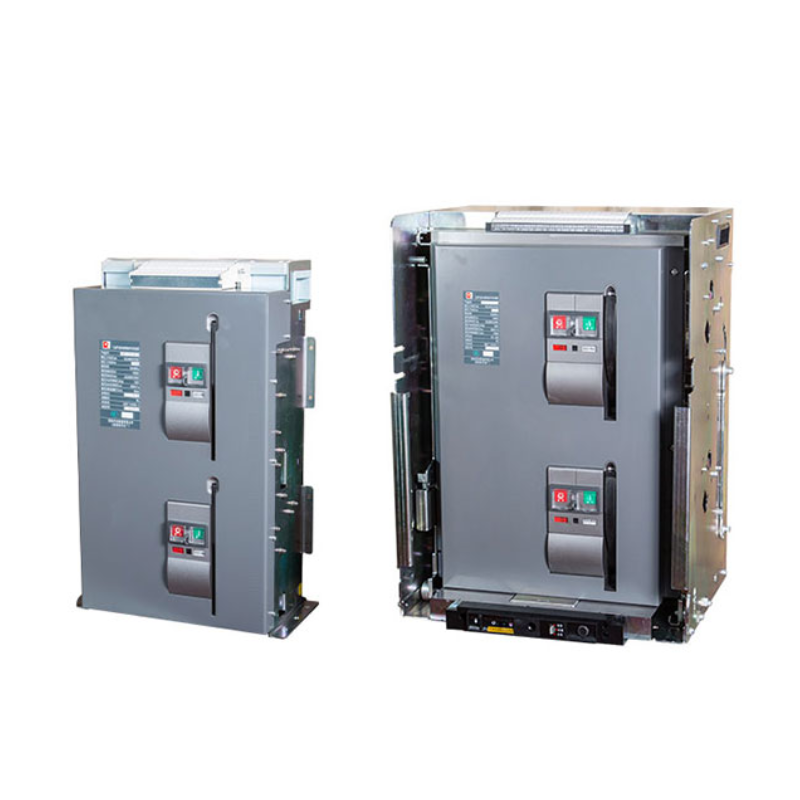

Cap3 Series Automatic Transfer Switch Electrical Appliances

Inquire
  • Brand
    Changshu
  • Series
    CAP3
  • Model
    CAP3-16/4INII
  • Polar Number
    4P
  • Rated Current
    16A
  • Rated Voltage
    24VDC
  • Operation Mode:
    Self Switching And Self Recovery/Mutual Backup
  • Power Type
    Grid gGenerator
  • Controller Type
    Standard Type
  • Minimum Conversion Action Time
    <75ms
  • Switch Type
    Switch Type
  • Control Type
    Automatic

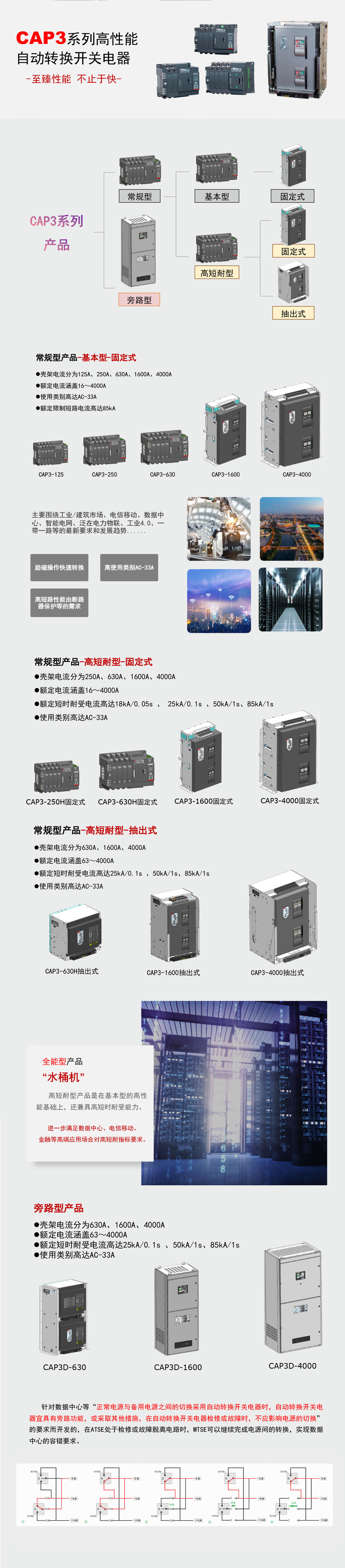

Product Details

CAP3 series automatic transfer switch electrical appliance 125 shell rack



Frame size designation Model Fixed working current Ie (A) Polar number Number of positions Rated working voltage Ue (V) Rated frequency (Hz) Rated insulation voltage Ui (V) Rated impulse withstand voltage Uimp (kV) Usage category Rated limiting short-circuit current (kA)
(Circuit Breaker)		 Rated limiting short-circuit current (kA)
(Fuse)		 Minimum conversion action time (ms) Electrical lifespan (times) Mechanical lifespan (times)
125 CAP3-16 16 2、3、4、4N 2、3 2P: AC230/240
3P, 4P: AC400/415		 50/60 800 8 AC-33A 2P: 50 (CM5X-125)
3P, 4P: 85 (CM5-125)		 2P: 80 (NT2-125)
3P, 4P: 120 (NT2-125)		 <75 6000 20000
125 CAP3-32 32 2、3、4、4N 2、3 2P: AC230/240
3P, 4P: AC400/415		 50/60 800 8 AC-33A 2P: 50 (CM5X-125)
3P, 4P: 85 (CM5-125)		 2P: 80 (NT2-125)
3P, 4P: 120 (NT2-125)		 <75 6000 20000
125 CAP3-63 63 2、3、4、4N 2、3 2P: AC230/240
3P, 4P: AC400/415		 50/60 800 8 AC-33A 2P: 50 (CM5X-125)
3P, 4P: 85 (CM5-125)		 2P: 80 (NT2-125)
3P, 4P: 120 (NT2-125)		 <75 6000 20000
125 CAP3-100 / CAP3-125 100 / 125 2、3、4、4N 2、3 2P: AC230/240
3P, 4P: AC400/415		 50/60 800 8 AC-33A 2P: 50 (CM5X-125)
3P, 4P: 85 (CM5-125)		 2P: 80 (NT2-125)
3P, 4P: 120 (NT2-125)		 <75 6000 20000




CAP3 series automatic transfer switch electrical appliance 250 shell rack



Frame size designation Project Model Rated working current Ie (A) Polar number Number of positions Rated working voltage Ue (V) Rated frequency (Hz) Rated insulation voltage Ui (V) Rated impulse withstand voltage Uimp (kV) Usage category Rated limiting short-circuit current (kA)
(Circuit Breaker)		 Rated limiting short-circuit current (kA) (fuse) Rated short-circuit making capacity (kA) Rated short-time withstand current (kA/0.05s) Minimum conversion action time (ms) Electrical lifespan (times) Mechanical lifespan (times)
250 Basic type Basic type: CAP3-160, CAP3-200, CAP3-250 160, 200, 250 3、4、4N 2、3 AC400/415 50/60 800 8 AC-33A 85 (CM5-250) 120 (NT2-250) — — <75 6000 20000
250 High short durability type (H) High short durability type: CAP3-16bH ~ CAP3-250H 16, 32, 63, 100, 125, 160, 200, 250 3、4、4N 2、3 AC400/415 50/60 800 8 AC-33A 85 (CM5-250) 120 (NT2-250) 36 18 <75 6000 20000A3:R5



CAP3 series automatic transfer switch electrical 630 shell rack



Frame size designation Type Model Example Rated working current Ie (A) Polar number Number of positions Rated working voltage Ue (V) Rated frequency (Hz) Rated insulation voltage Ui (V) Rated impulse withstand voltage Uimp (kV) Usage category Rated limiting short-circuit current (kA)
(Circuit Breaker)		 Rated limiting short-circuit current (kA)
(Fuse)		 Rated short-circuit making capacity (kA) Rated short-time withstand current (kA/0.1s) Minimum conversion action time (ms) Electrical lifespan (times) Mechanical lifespan (times)
630 Conventional type (basic type) CAP3-350 ~ CAP3-630 350, 400, 500, 630 3、4、4N 2、3 AC400/415 50/60 800 8 AC-33A 85 (CM5-630) 120 (NT3-630) — — <100 6000 20000
630 Conventional type (high short durability/pull-out type) CAP3-63cH ~ CAP3-630H 63, 100, 125, 160, 200, 250, 350, 400, 500, 630 3、4、4N 2. 3 (Pull out type with only three working positions) AC400/415 50/60 800 8 AC-33A 85 (CM5-630) 120 (NT3-630) 52.5 25 <100 6000 20000
630 Dual bypass conversion type (3D) CAP3D-63cH ~ CAP3D-630H 63, 100, 125, 160, 200, 250, 350, 400, 500, 630 3、4、4N 3 (only three working positions) AC400/415 50/60 800 8 AC-33iA / AC-33B — — — — <100 6000 20000





CAP3 series automatic transfer switch electrical 1600 shell rack



Frame size designation Type Model Rated working current Ie (A) Polar number Number of positions Rated working voltage Ue (V) Rrated frequency (Hz) Rated insulation voltage Ui (V) Rated impulse withstand voltage Uimp (kV) Usage category Rated short-time withstand current (kA/1s) Rated short-time making capacity  (kA) Minimum conversion action time (ms) Electrical lifespan (times) Mechanical lifespan (times)
1600 Conventional type CAP3-630b, CAP3-800, CAP3-1000, CAP3-1250, CAP3-1600 630, 800, 1000, 1250, 1600 3、4、4N 3 AC400/415 50/60 1000 12 AC-33A (630-1000A)
AC-33iA/AC-33B (1250-1600A)		 50 85 <100 6000 10000
1600 Dual bypass conversion type CAP3D-630b, CAP3D-800, CAP3D-1000, CAP3D-1250, CAP3D-1600 630, 800, 1000, 1250, 1600 3、4、4N 3 AC400/415 50/60 1000 12 AC-33A (630-1000A)
AC-33iA/AC-33B (1250-1600A)		 50 85 <100 6000 10000
