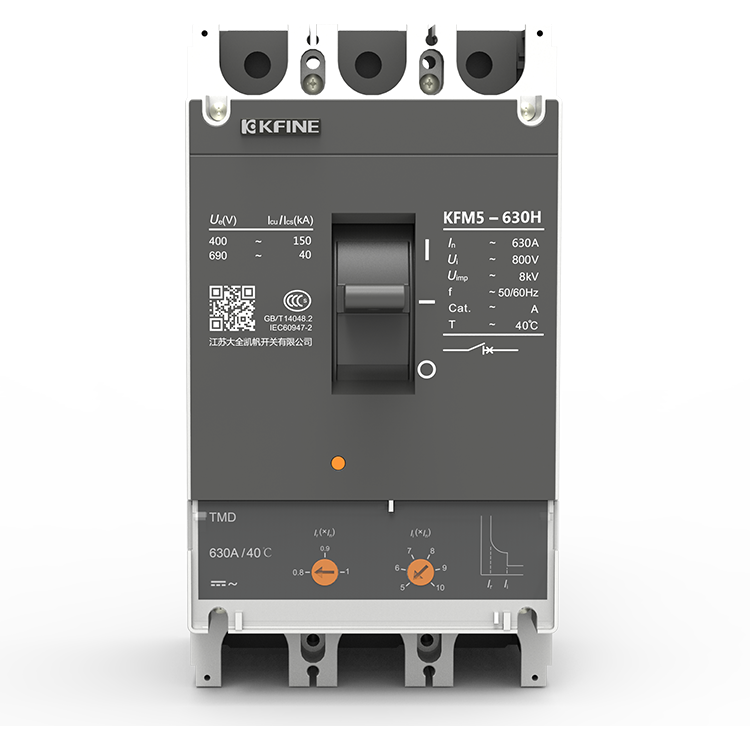

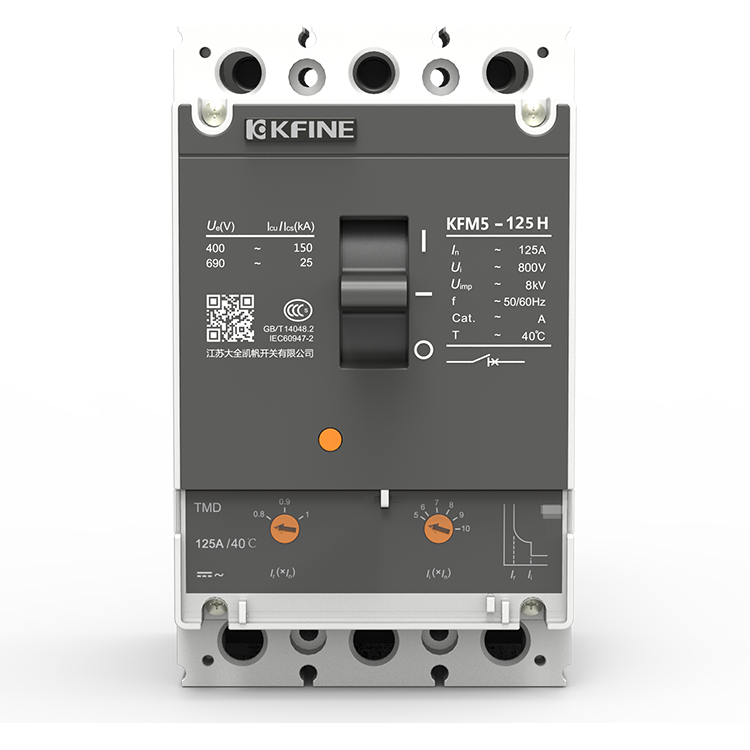

KFINE molded case circuit breaker KFM5-125/160/250/400/630

Inquire

Brand

KFINE
Series

KFM5
Polar Number

3P；4P
Rated Voltage

400VAC；690VAC；250VDC

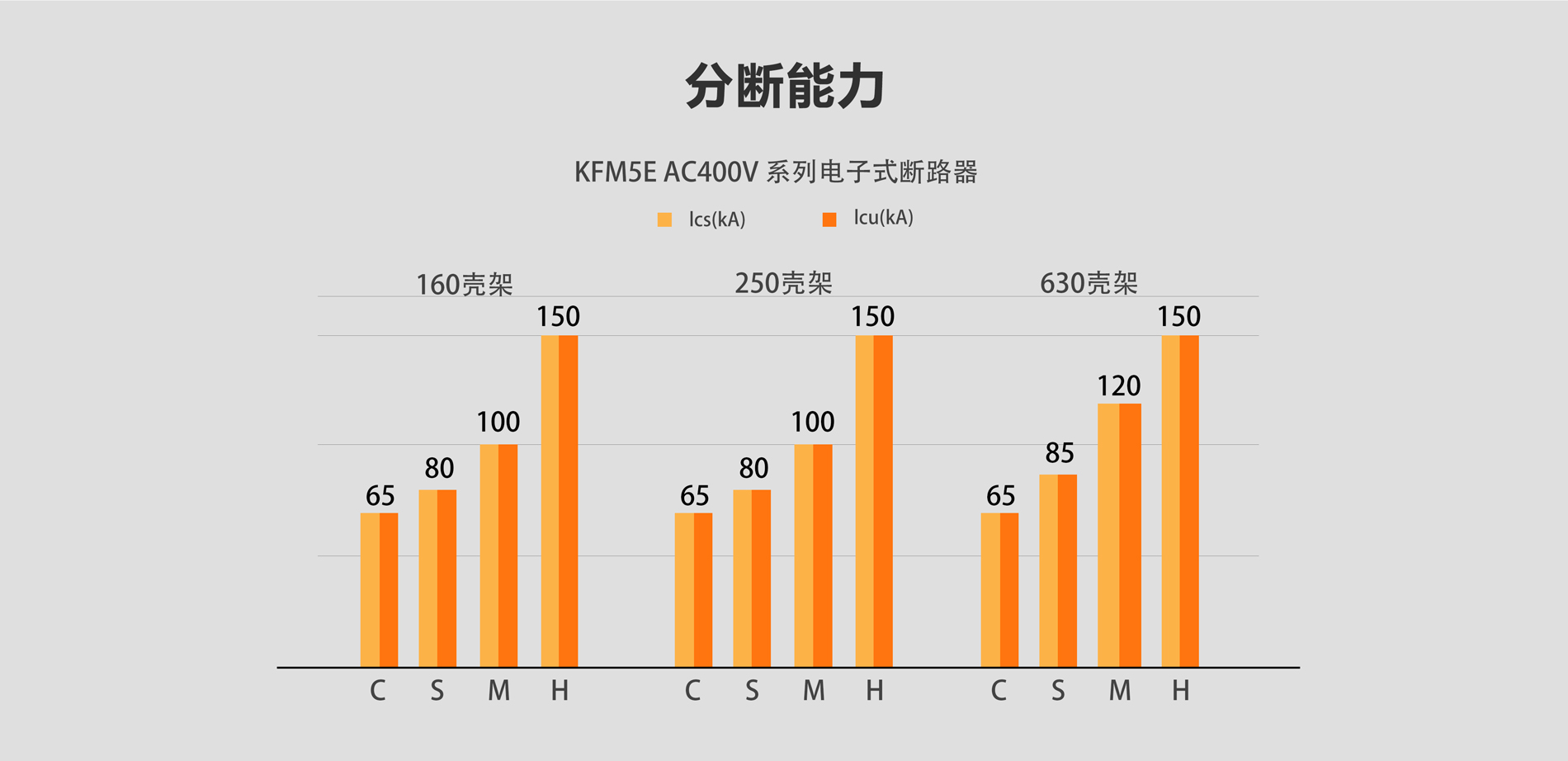

Breaking Capacity

36KA；70KA；85KA；100KA；150KA
tripping mode

Thermal Magnetic Type
Installation Method

Fixed
Operation Method

manual
Trip unit

Compound Release Device
Wiring Mthod

Front Board Wiring
Protection Function

LI
Rated Current

160A；250A；400A；630A；125A
Protection Type

Body (with protective function)
Shell Current

160A；250A；400A；630A；125A
Model

KFM5-125；KFM5-160；KFM5-250；KFM5-400；KFM5-630

Product Details

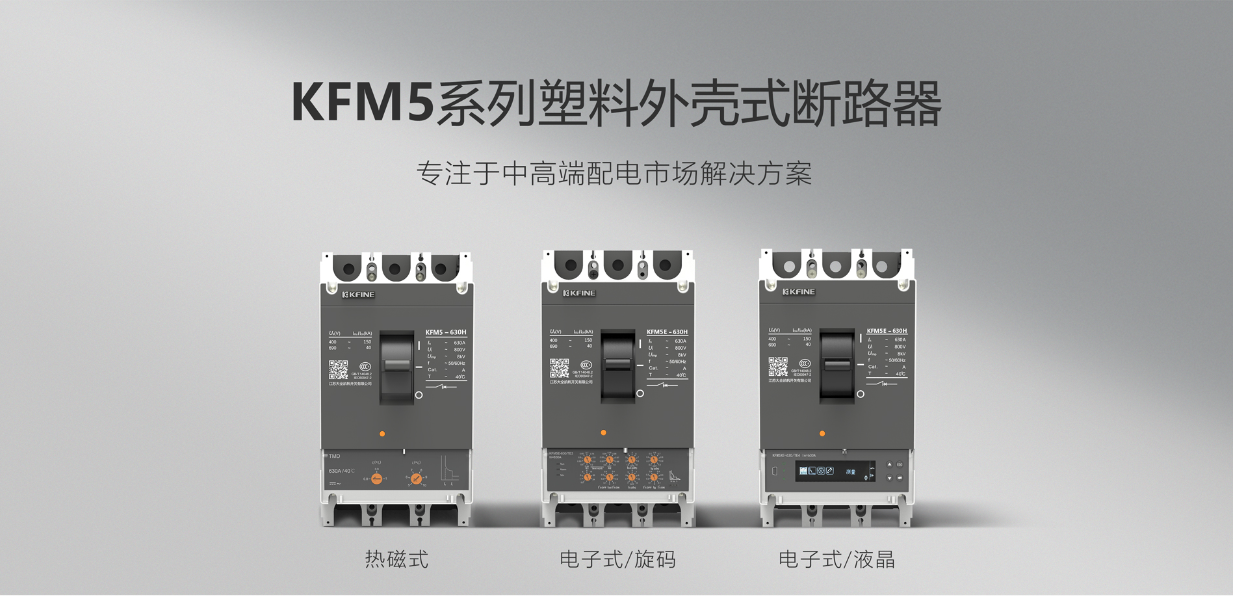

KFM5, KFM5E, and KFM5L plastic case circuit breakers (hereinafter referred to as circuit breakers) are a brand-new generation of circuit breakers featuring a self-developed dual-break point structure technology. These circuit breakers are suitable for use in circuits with an AC frequency of 50Hz, a high voltage up to 1140V, and a rated current up to and including 630A for making, breaking, and carrying rated currents. They can provide reliable protection for lines and electrical equipment in cas

Daqo Kaifan KFM5 Molded Case Circuit Breaker - Chinese and English - 2025
