KFG3 系列小型隔离开关

KFG3 Series Miniature Switch-Disconnector

产品说明（中英文对照）｜Product Description (Chinese–English Bilingual)

KFG3 系列小型隔离开关（以下简称“开关”）是面向低压终端配电设计的模块化隔离开关，采用适用于标准导轨安装的紧凑结构，适用于交流 50Hz、额定工作电压 400V、额定电流至 100A 的配电线路。开关用于配电线路中不频繁的接通与分断，并可在检修时提供可靠的电气隔离，具备明显的通断状态指示与带负荷分断能力。

The KFG3 series miniature switch-disconnector (hereinafter referred to as “the switch”) is a modular isolator designed for low-voltage final distribution. Featuring a compact structure suitable for standard DIN-rail mounting, it is intended for distribution circuits of AC 50 Hz, rated operational voltage 400 V and rated current up to 100 A. The switch is used for infrequent making and breaking of distribution circuits and provides reliable electrical isolation during maintenance, with clear ON/OFF indication and load-breaking capability.

系列产品适配民用住宅、工业配电与建筑配电等多种应用环境，可用于住宅终端配电箱内的进线总开关或分路隔离，也可用于工业控制柜与楼宇配电箱作为隔离开关使用；极数与电流规格齐全，便于项目统一选型与集中采购。

The series suits a wide range of applications, including civil residential, industrial power distribution and building distribution. It can serve as the incoming main switch or as a branch isolator in residential consumer units, and as a switch-disconnector in industrial control cabinets and building distribution boards. The complete range of pole and current ratings facilitates unified model selection and centralized procurement across projects.

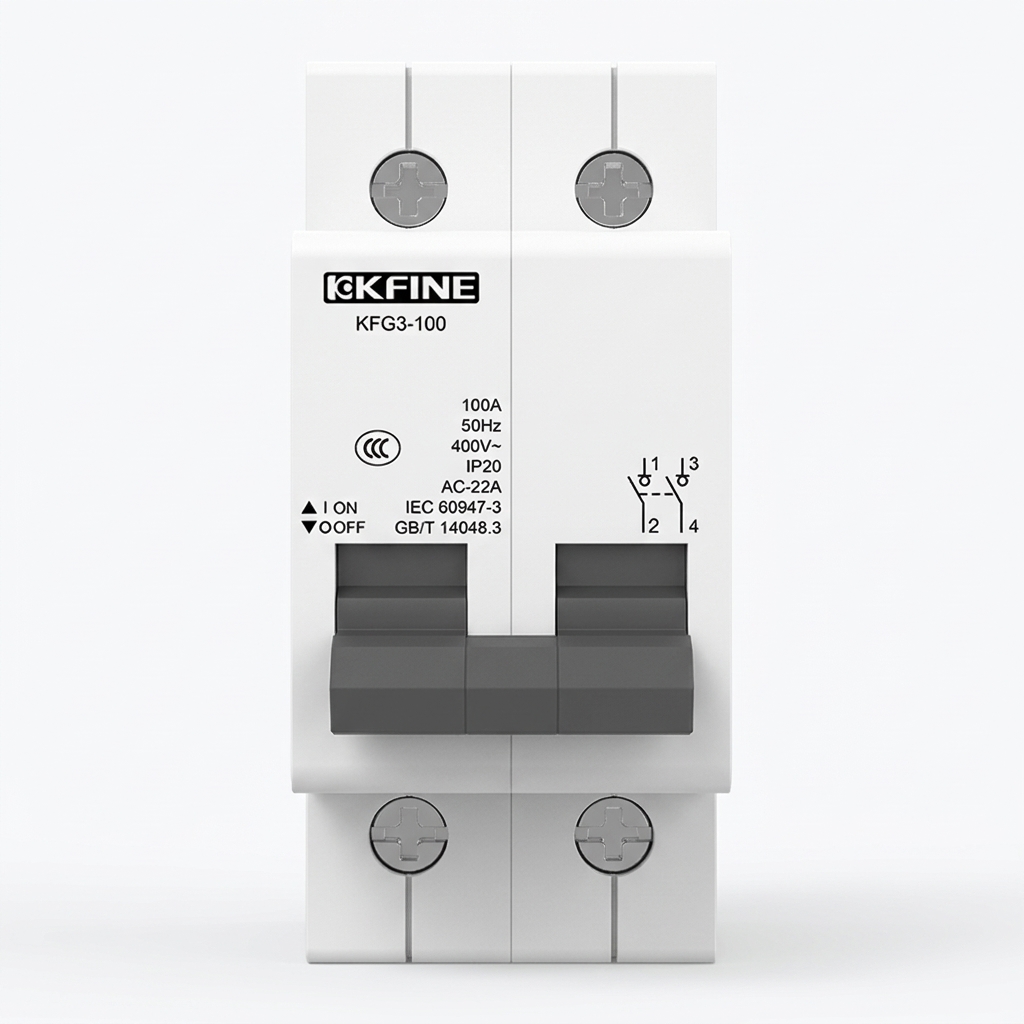

产品符合 IEC 60947-3《低压开关设备和控制设备 第3部分：开关、隔离器、隔离开关及熔断器组合电器》及 GB/T 14048.3《低压开关设备和控制设备 第3部分：开关、隔离器、隔离开关及熔断器组合电器》的要求，并按标准完成温升、介电性能与通断能力等型式试验。产品外壳正面实拍标注相关标准与电气参数信息，为专业选型提供依据。

The product complies with IEC 60947-3 “Low-voltage switchgear and controlgear – Part 3: Switches, disconnectors, switch-disconnectors and fuse-combination units” and GB/T 14048.3 (identical to IEC 60947-3). Type tests such as temperature rise, dielectric properties and making/breaking capacity are carried out accordingly. The standards and electrical parameters are printed on the front of the housing, providing a solid basis for professional model selection.

注：表中 “100A、400V~、50Hz、AC-22A” 等参数与产品正面标示一致。

Note: Values such as “100 A, 400 V~, 50 Hz, AC-22A” match the markings on the front of the product.

1. 应用广覆盖：适配民用住宅、工业配电与建筑配电等多种环境，系列规格齐全，便于项目统一选型。

Wide application coverage: suits civil residential, industrial and building distribution environments, with a complete range for unified selection across projects.

2. 标准符合性：符合 IEC 60947-3 与 GB/T 14048.3，外壳正面实拍标注标准信息，强化专业选型依据。

Standard compliance: conforms to IEC 60947-3 and GB/T 14048.3, with the standards printed on the front of the housing to strengthen the professional basis for selection.

3. 参数标识直观：正面清晰标示 100A、400V~、50Hz、AC-22A 等关键电气参数，识别直观。

Clear parameter marking: key electrical ratings such as 100 A, 400 V~, 50 Hz and AC-22A are clearly printed on the front for intuitive identification.

4. 状态一目了然：联动式操作手柄配 ON / OFF 状态标识，便于观察开关通断状态。

Visible status: the linked operating handle with ON / OFF marking makes the open or closed state easy to observe.

5. 结构紧凑：模块化紧凑结构适合配电箱内部布局，系列覆盖 1P 至 4P 宽度规格。

Compact structure: the modular, space-saving design fits the internal layout of distribution boards, covering widths from 1P to 4P.

6. 外观专业：白色绝缘外壳搭配深灰手柄，端子位置与回路图标示清楚，呈现专业可靠的配电产品形象。

Professional appearance: the white insulating housing with a dark grey handle, together with clearly marked terminal positions and circuit icons, presents a professional and reliable image.

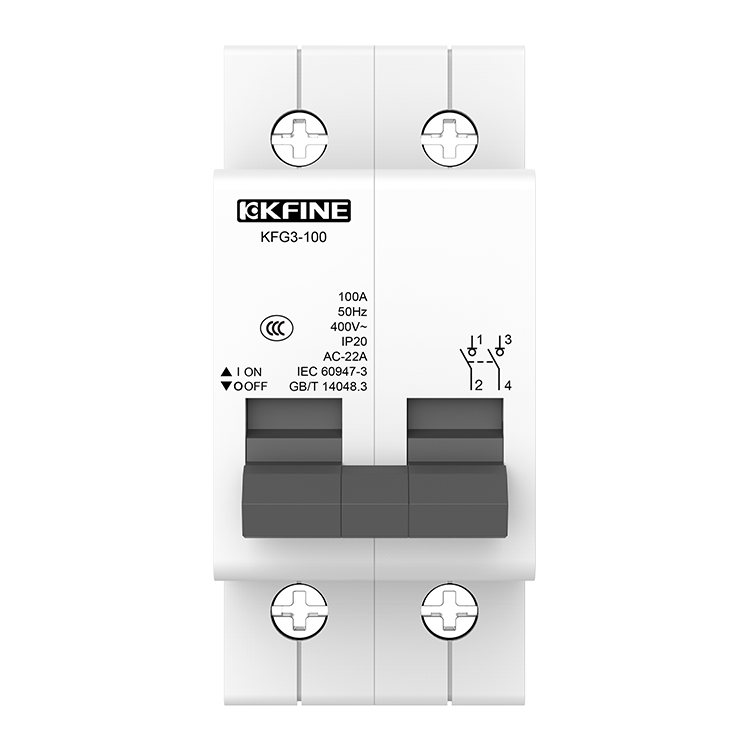

开关采用白色绝缘外壳，配置深灰操作手柄，整体造型简洁、色泽分明；端子位置与回路图标示清楚，接线与回路对应一目了然。外壳正面为参数与标准信息提供清晰印字面，模块化结构使产品高度保持一致，宽度随极数等比增加，便于在配电箱内紧凑排列与整齐走线。

The switch features a white insulating housing and a dark grey operating handle, with a clean and clearly defined appearance. Terminal positions and circuit icons are clearly marked, making wiring and circuit identification straightforward. The front of the housing carries clearly printed parameters and standards, while the modular construction keeps a consistent height and increases in width in proportion to the number of poles, allowing compact arrangement and neat wiring inside distribution boards.

注：宽度随极数等比增加；上表为常见规格，具体规格组合以产品样本为准。

Note: Width increases in proportion to the number of poles. The above are common ratings; the exact combinations are subject to the product catalogue.

1. 环境温度：-5 ℃ ~ +40 ℃，24 h 内平均不超过 +35 ℃。

Ambient temperature: -5 ℃ to +40 ℃, with a 24 h mean not exceeding +35 ℃.

2. 海拔：安装地点海拔不超过 2000 m。

Altitude: not exceeding 2000 m at the installation site.

3. 相对湿度：最湿月平均最大相对湿度 90%。

Relative humidity: up to 90% monthly mean in the wettest month.

4. 污染等级：3 级。

Pollution degree: 3.

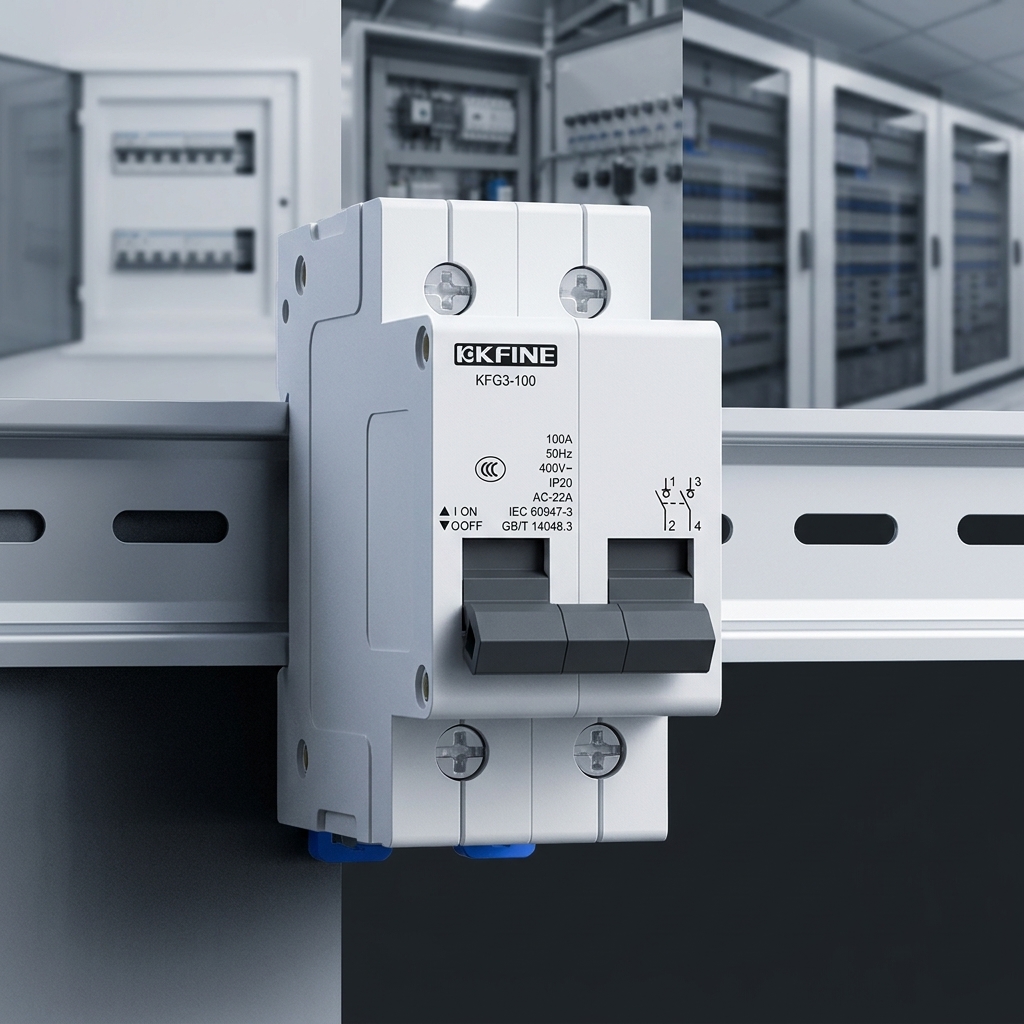

5. 安装方式：垂直安装于 35 mm 标准导轨。

Mounting: vertical mounting on a 35 mm standard DIN rail.

1. 安装前应核对额定电压、额定电流与被控线路匹配，并确认产品外观完好。

Before installation, verify that the rated voltage and rated current match the circuit, and check that the product is free from damage.

2. 应垂直安装于标准导轨，接线牢固，端子螺钉按规定力矩紧固。

Mount vertically on a standard DIN rail; wire securely and tighten terminal screws to the specified torque.

3. 用作电气隔离时，应先分断负荷电流，再操作手柄；严禁带大负荷强行操作。

When used for electrical isolation, break the load current first before operating the handle; never force operation under heavy load.

4. 通过手柄及 ON / OFF 标识确认分合状态，检修时应执行验电、锁定等安全措施。

Confirm the open/closed state via the handle and the ON / OFF marking; during maintenance, carry out voltage verification and locking procedures.

5. 应由具备相应资质的电工按接线图安装、操作与维护，并定期检查端子紧固与机械动作。

Installation, operation and maintenance shall be carried out by qualified electricians according to the wiring diagram; check terminal tightness and mechanical action periodically.

订货时请按“产品型号 + 极数 + 额定电流”的格式注明，例如：KFG3-100 3P 100A。如需其他配置，请在订货时另行说明；具体供货规格以产品样本及合同为准。

Please specify orders in the format “model + number of poles + rated current”, e.g. KFG3-100 3P 100A. For other configurations, please state your requirements when ordering. Detailed supply specifications are subject to the product catalogue and the contract.

Note: The technical data and appearance described in this document are compiled from the actual product and the relevant standards and are for selection reference only. Actual parameters, markings and supply specifications shall be subject to the manufacturer's official catalogue and the delivered product.
